2000L/H 20MPa High Pressure Milk Ultrasonic Industrial Mixer Homogenizer

Brand Name : PLS

Model Number : HOMG-Q2000-P25

Certification : ISO, CE

Place of Origin : CHINA

MOQ : 1 unit

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 30 units/month

Delivery Time : 20-45 days

Packaging Details : sea worthy package

Name : High Pressure Homogenizer

Capacity : 2000 liters/hour

Brand : PLS Ronghe

Model : HOMG-Q2000-P25

Max. Pressure : 25MPa

Working Pressure : 20MPa

Pressure adjusting : 2 stages

Application : Milk, juice, beverage

Power : 15kw

Warranty : 1 year

Condition : New

Origin : China

Contact Now

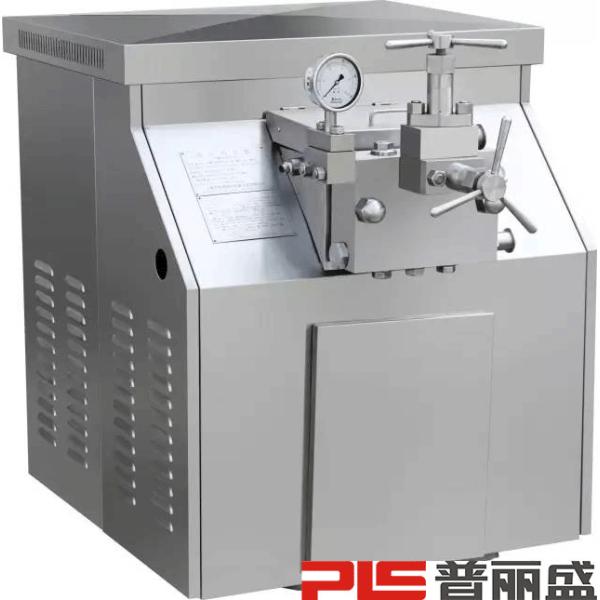

HOMG Series High Pressure Homogenizer

The series high pressure homogenizers are our traditional produces. Classified according to pressure, there are 25Mpa, 30Mpa, 40Mpa, 60Mpa and 70Mpa five series. The flow rate varies from 100liters/hour to 5 tons/hour. The series products have been made important improvement on the basis of existing structure at home and abroad, which makes the total performance be more excellent and specific requirements of domestic users are further satisfied.

2000L/H 20MPa High Pressure Milk Ultrasonic Industrial Mixer Homogenizer

Structural features:

The transmission box part adopts forced lubricating system, which transports lubrication to every place where lubricating is required through pressure oil pump so as to provide reliable operation guarantee foe the equipment: (equipment below 11KW does not include the system).
The forced cooling system can maintain the lubrication at the best status, which is the reliable guarantee for long time and high strength operation of the equipment: (equipment below 11KW does not include the system).
The soft and hard integrated plunger sealing structure.
Large range pressure gauge is adopted, with super long service life.

High rigidity pressure adjusting device is adopted, which is easy and flexible to load and unload.

No.	Item	Specification
1	Model	HOMG-Q2000-P25
2	Capacity	2000L/H
3	Homogenizing pressure	Max:250bar
3	Homogenizing pressure	Working pressure:200bar
4	Motor	15KW
5	Homogenizing	Two stage
6	Pressure adjusting	Two stage adjusting
7	Speed reducing	Built-in reduction gear
8	Drive box	3 pistons
8	Lubrication	Forcing ＋ splash
9	Volumetric efficiency	95％
10	Moving time	Equipment can work more than 20 hours
11	Oil and bearing temp.	External oil cooling system, oil temp.≤65℃
12	Inlet and outlet connection	SUS Clamp connection, 2"
13	Material Temp.	5～90℃
14	Moving noise	≤85db
15	Cooling water	Normal pressure, normal temp. tap water spray cooling
16	Seal ring	4 F rectangular ring
17	Cover material	SUS
18	Dimension(MM)	14309201300mm
